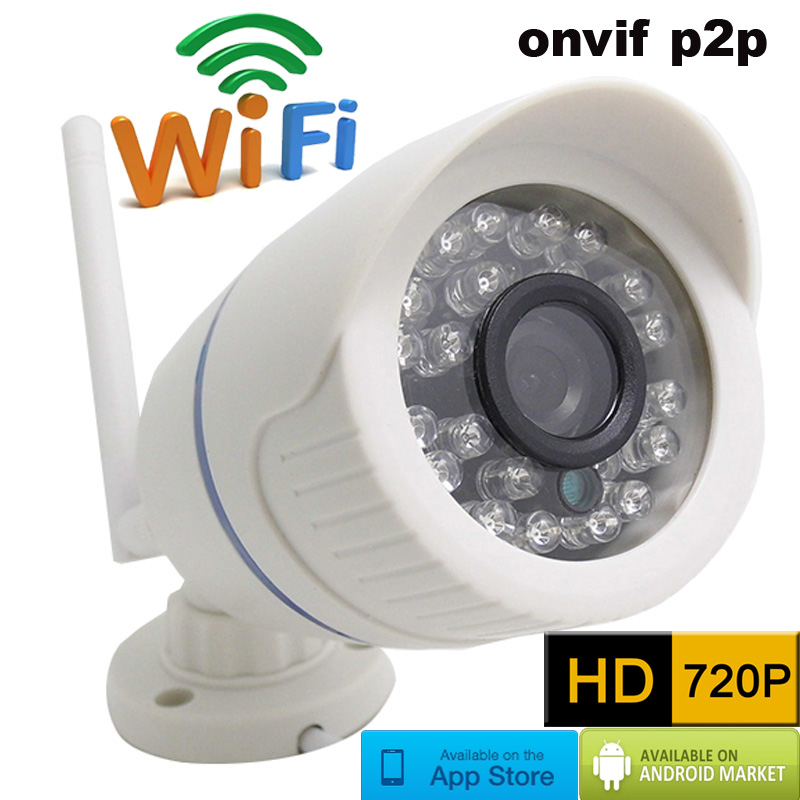

720P HD Wireless CCTV IP Camera Mini Bullet WIFI Camera Outdoor waterproof Surveillance Security video system Infrared onvif p2p

$38.86 $28.37

720P CCTV IP Camera HD Wireless Mini Bullet WIFI Cameras Outdoor waterproof network Surveillance Security system ip cam InfraredUSD 38.90/piece Mini camera cctv ip cameras Network cameras webcam

Buy product

SKU: 32476367961 Category: Tag:

Onvif HD Wifi IP Digicam Wireless P2P Plug Play IR-Cut Night Vision Waterproof Outdoor Indoor Infrared 1280*720P 1MP

720P video HD Wireless CCTV IP Digicam Mini Bullet WIFI Digicam Outdoor waterproof Surveillance Security system Infrared onvif p2p

Feature:
Wi-Fi/802.11/b/g/n , Free Factory DDNS
Support Protocol: TCP, UDP, IP, HTTP, SMTP, DHCP, DNS,ARP, ICMP, POP3, NTP, IPSec UpnP, RTP, and RTCP
Dual stream encoding / H.264 compression mode
1/4-inch 1.0 Megapixel OV9712 CMOS, include 4mm fixed lens
Night Vision:5-30m
1MP:1280*720@30fps
Support Multi-Screen utility and CMS
Onvif Compatibility
Wireless, P2P, Support Andorid  iphone
Support IR-Cut
Lens size : Default : 3.6mm Optional : 6mm 8mm

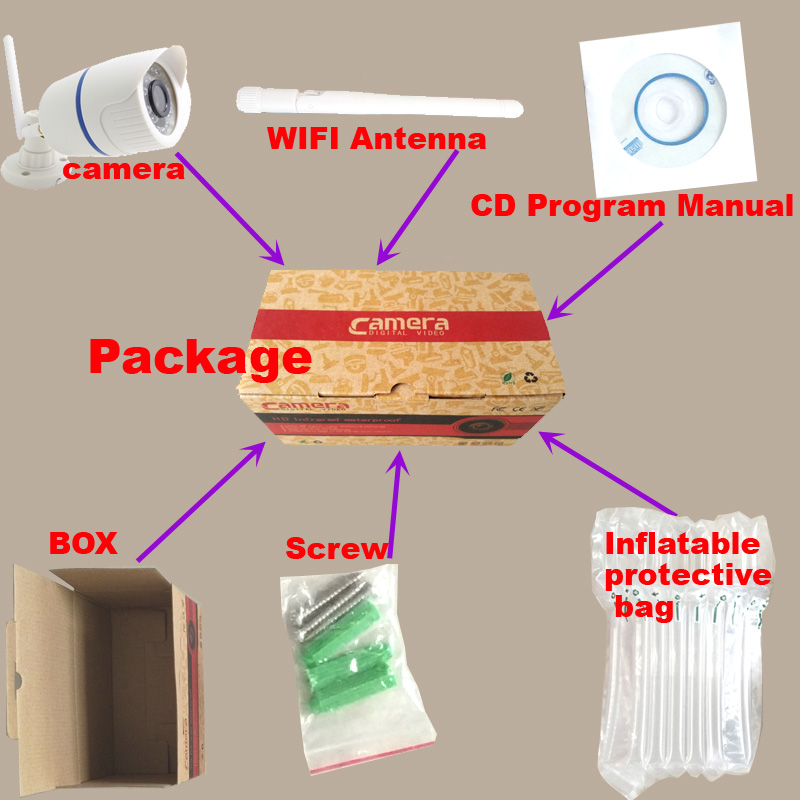

Package includes:

1* 720P Wireless IP Digicam
1* CD (including introduction)
1* antenna

3* Screw


Note: Please use 12V 2A power supply.
packaging does not include the power supply.

Power adapter please click:   buy now




Model : IP507AR-A-WIFI

Features

System security

3-level user authority management, built in watchdog,

can auto test chipset and software.

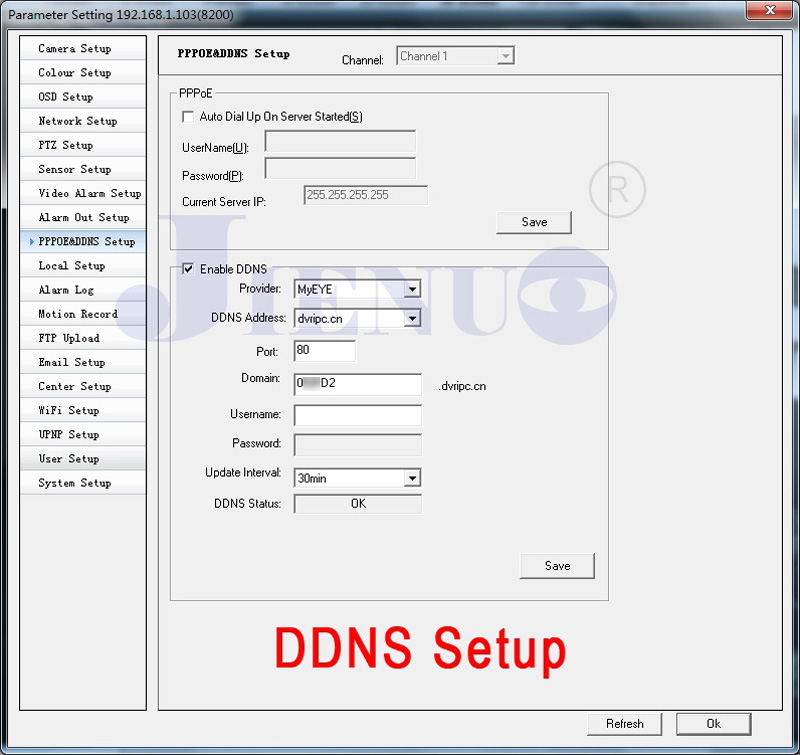

Built-in dynamic IP domain system (Free)

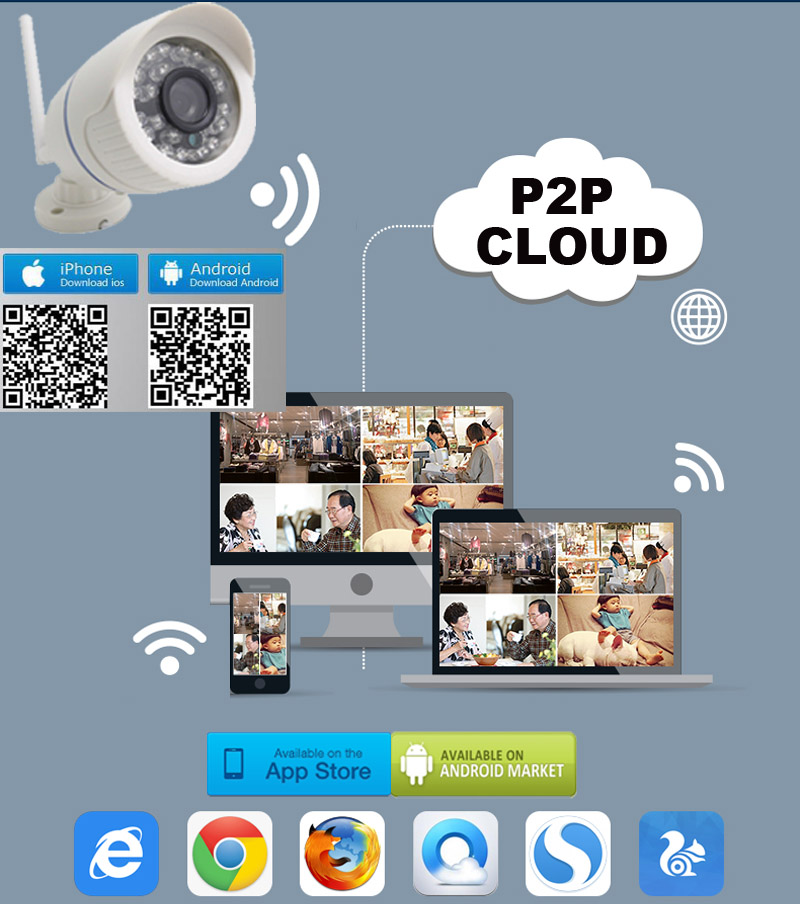

Built-in domain name, support dynamic IP. support P2P

Mobileview platform

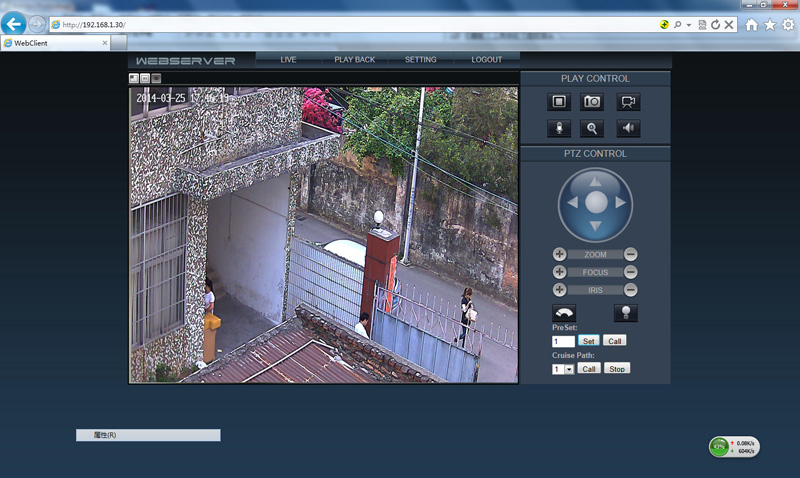

 No need install software,multi-channel mobile view,support mobile view alarm snapshot.

Plug & Play

Plug & Play technology applied. 99% penetration rate.

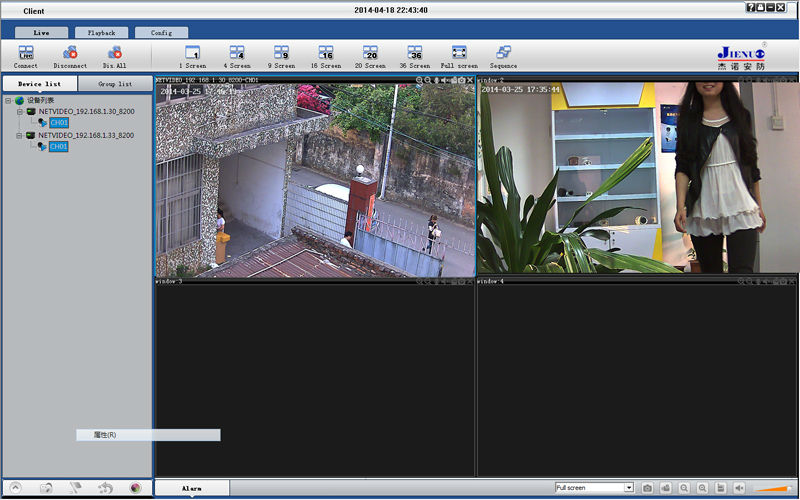

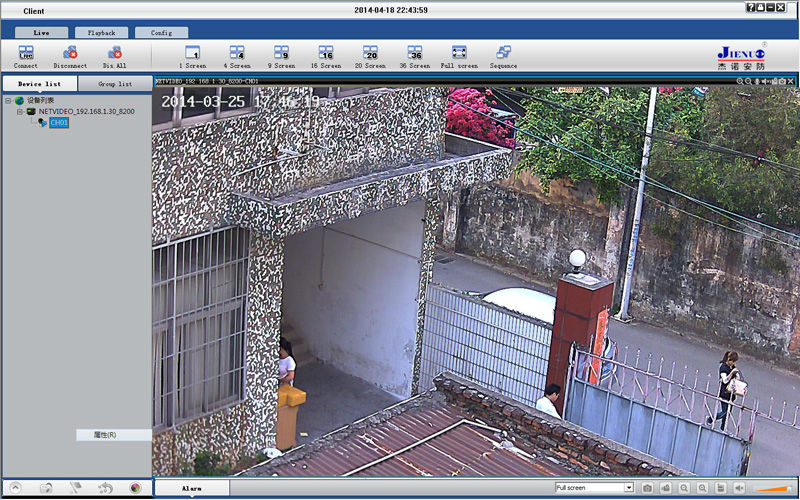

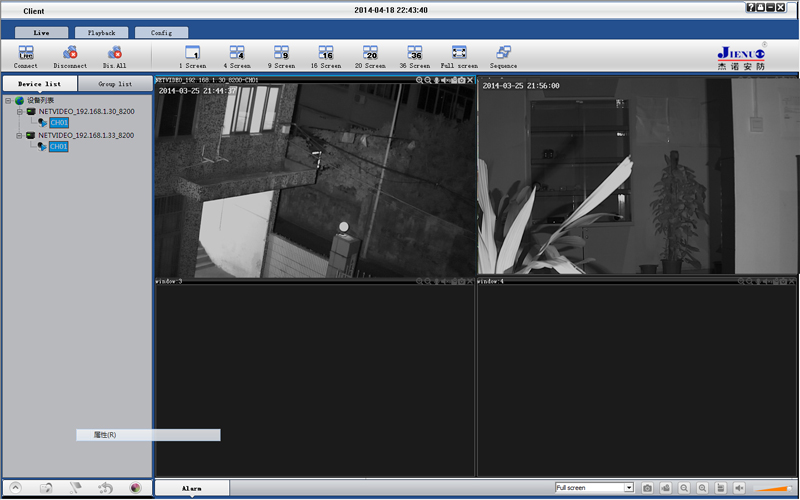

CMS

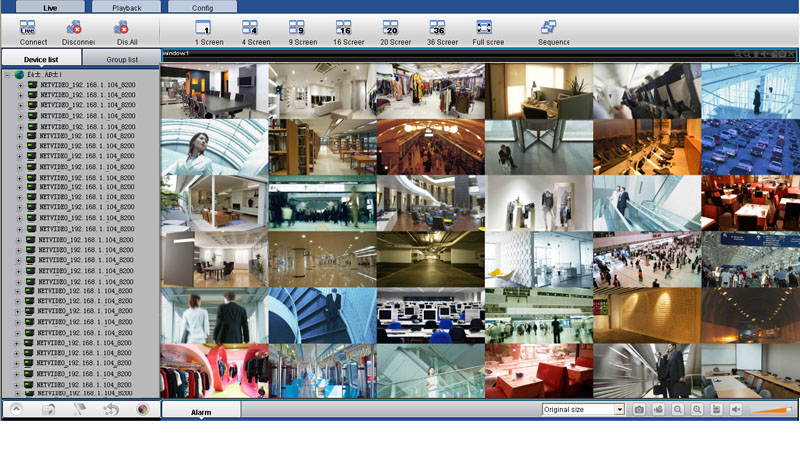

1, 4, 9,16, 20, 36 channel central management surveillance system, no user limitation.

Centralized monitoring, remote recording, remote playback.

Core

O.S

Built in Linux

Control protocol

ONVIF protocol, high interoperability

Processor

 Hi3518C processor,built in ARM9 ,Max. 440MHz and High-speed video co-processor

Video

Compression format

H.264 Baseline Profile, H.264 Main Profile, MJPEG/JPEG Baseline

resolution/frame rate

1080*720P/VGA/QVGA   30fps/ 25fps

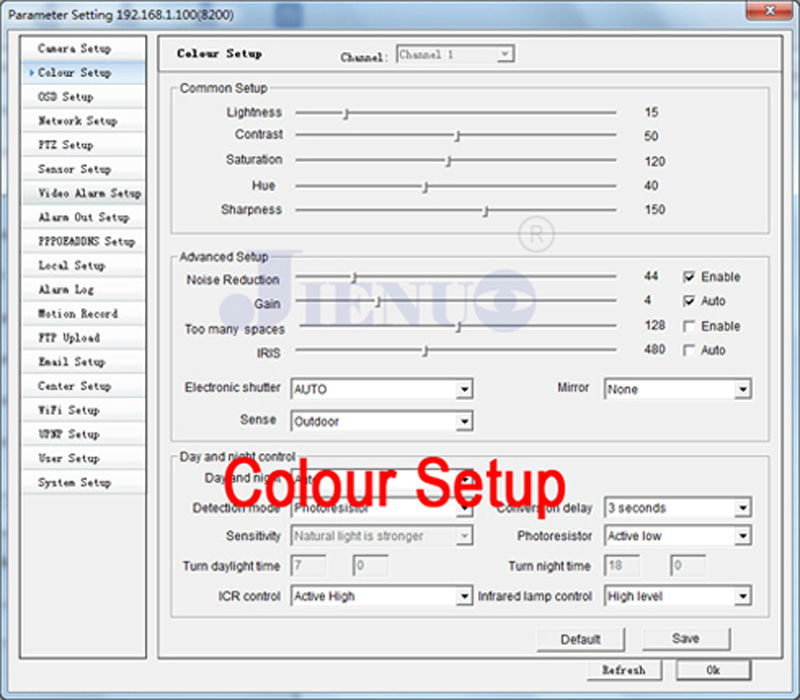

Image adjustment

Brightness, Contrast, Saturation are adjustable

Sensor

1/ 4 720 Progressive CMOS sensor

Minimum illumination

1.0 Lux / F1.2

CMOS

support AWB, AGC, BLC

Sensor size

3.84mm* 2.16mm

Video coding

Multi stream:720P, 30fps+VGA, 30fps+QVGA,30fps+720P , 1fsJPEG capture

Bit Rate

CBR/ VBR, output range: 32kbps–40Mbps

 Lens

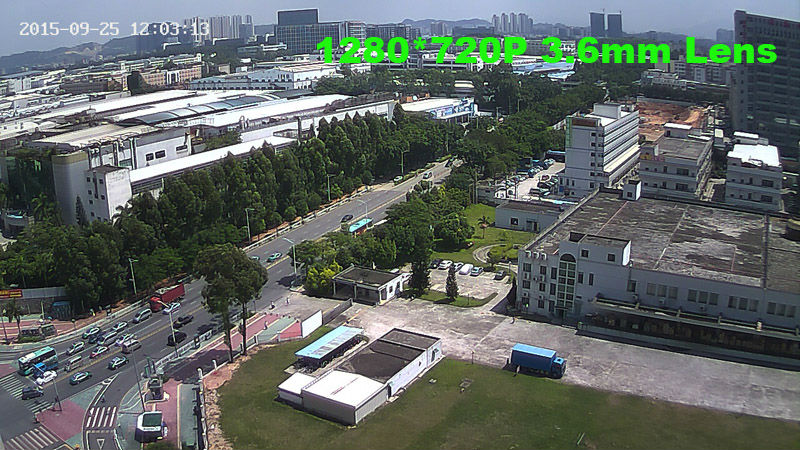

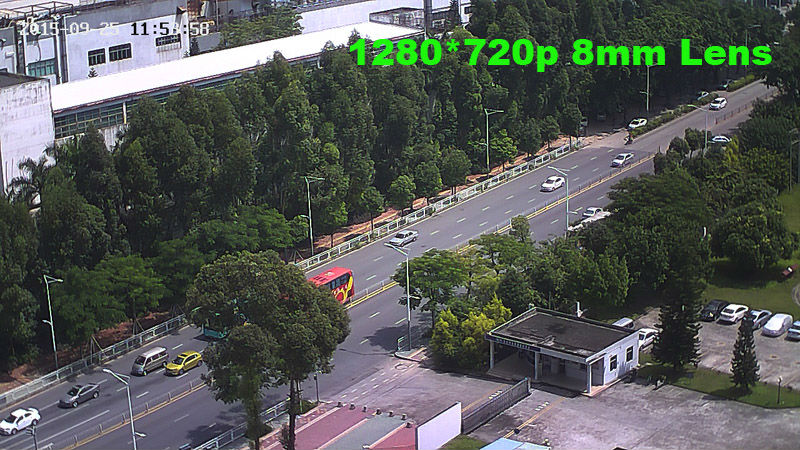

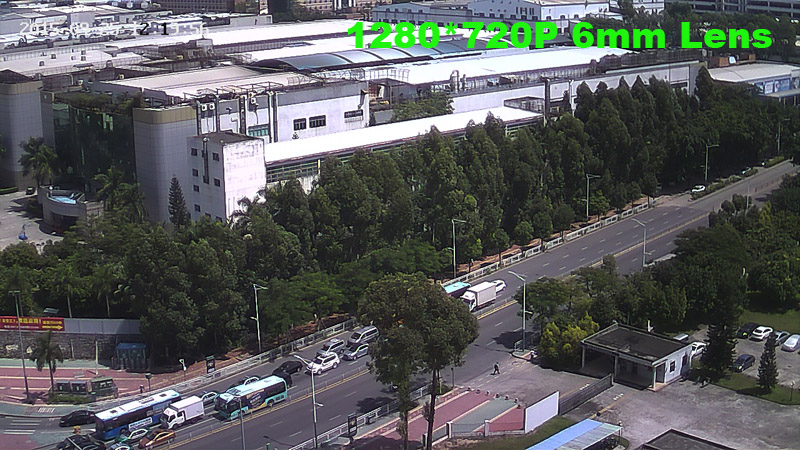

3.6mm, 6mm, 8mm, 12mm   default: 3.6mm

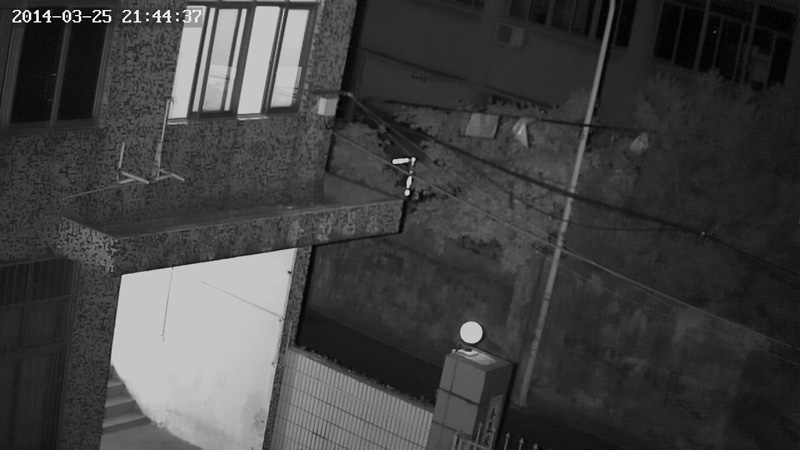

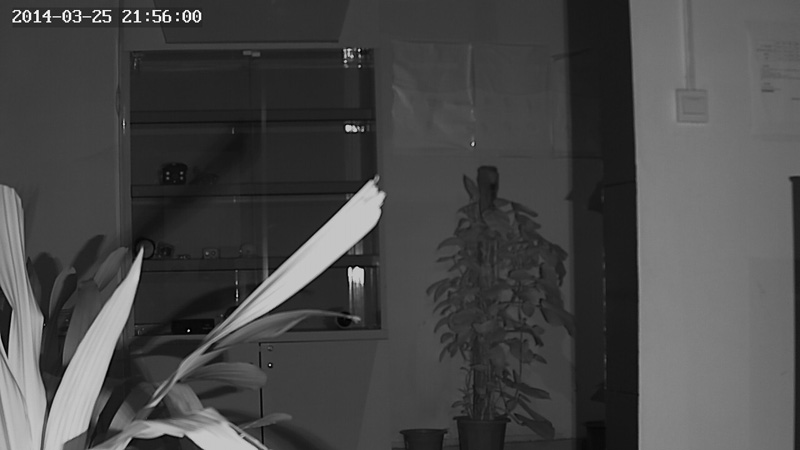

Night Vision

Night vision

Dual IR-CUT Filter auto switch,  24pcs 850nm D=5mm LED

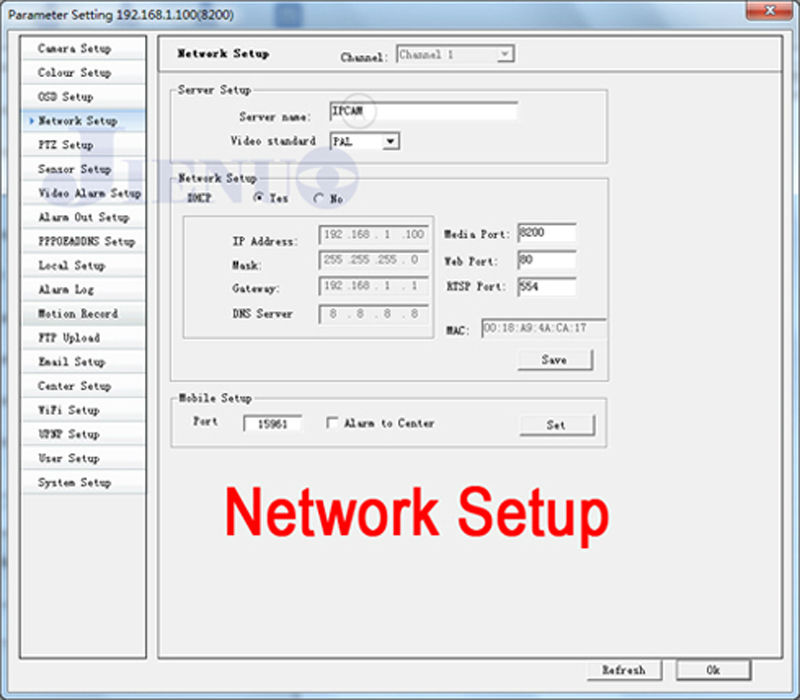

Network

Socket

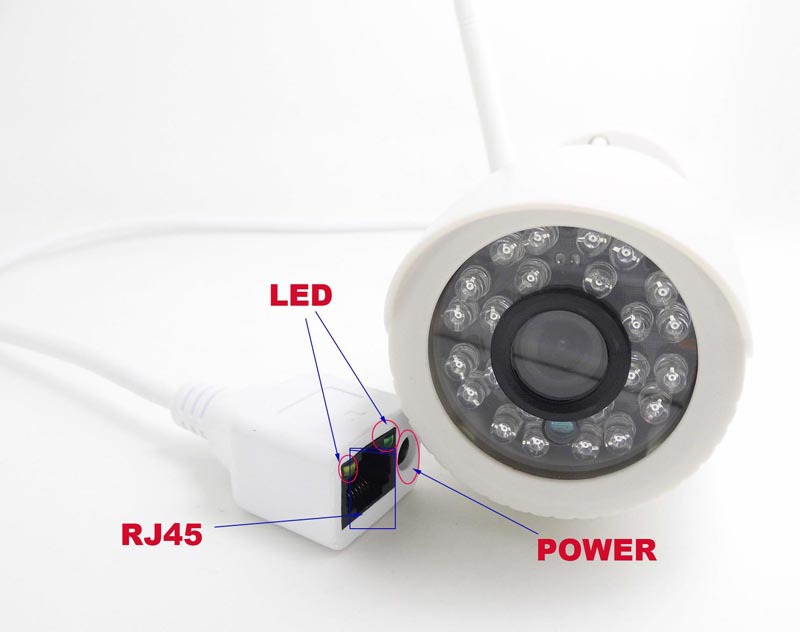

10/100Mb   self-adaptable Ethernet slot

Network Protocol

TCP/IP,HTTP,RTSP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UpnP,P2P ect.

IP address

Dynamic IP and static IP address

WIFI

WIFI 802.11 b/g/n

Network adaptability

 can auto adjust stream and frame rate according to the bandwidth

Others

Housing material

ABS Plastic

Use Enviroment

Indoor/ourdoor

Power supply

DC12V±10%

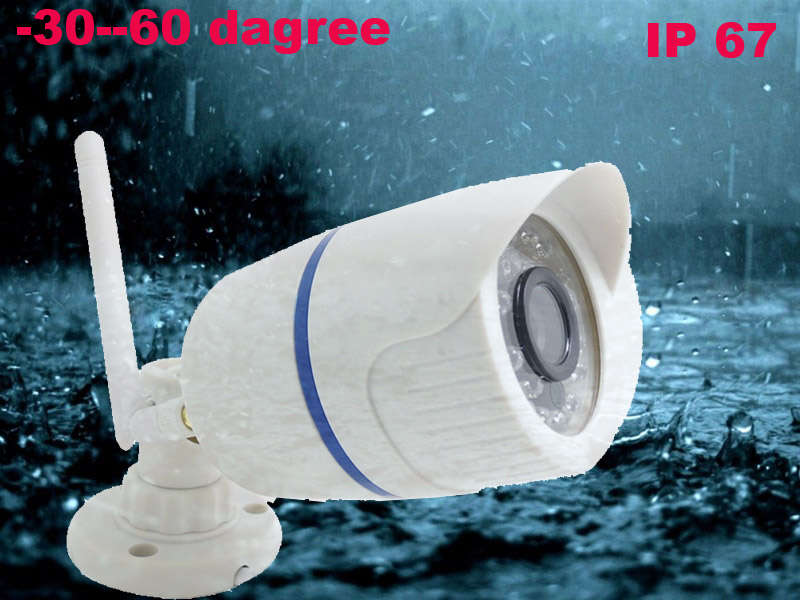

Working temperature

 -30 –60 Dagree

RTP

Support RTP, can auto adjust time when restart after power failure.

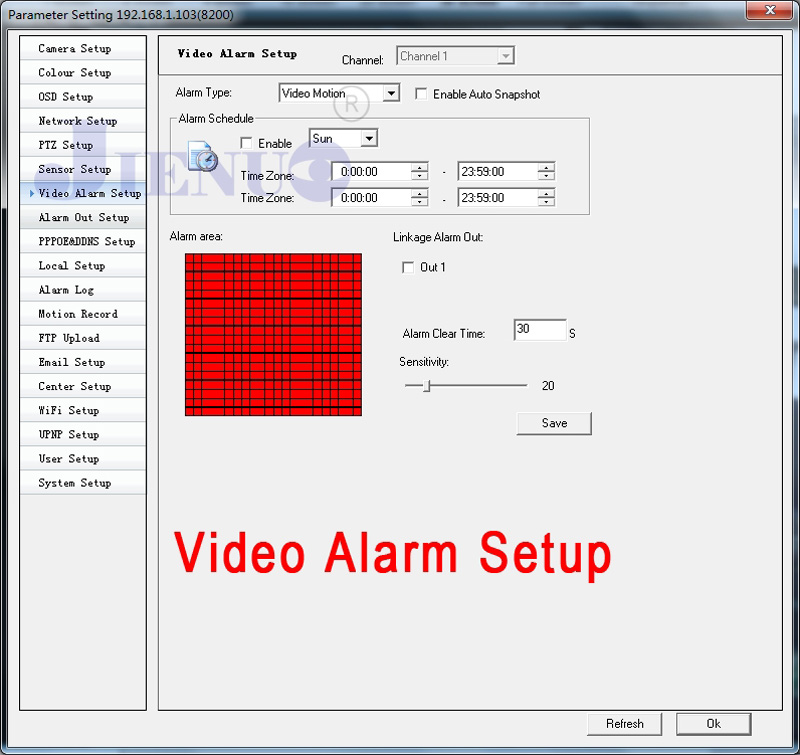

Motioin Detection

can setup motion detection sensitivity

Alarm notification

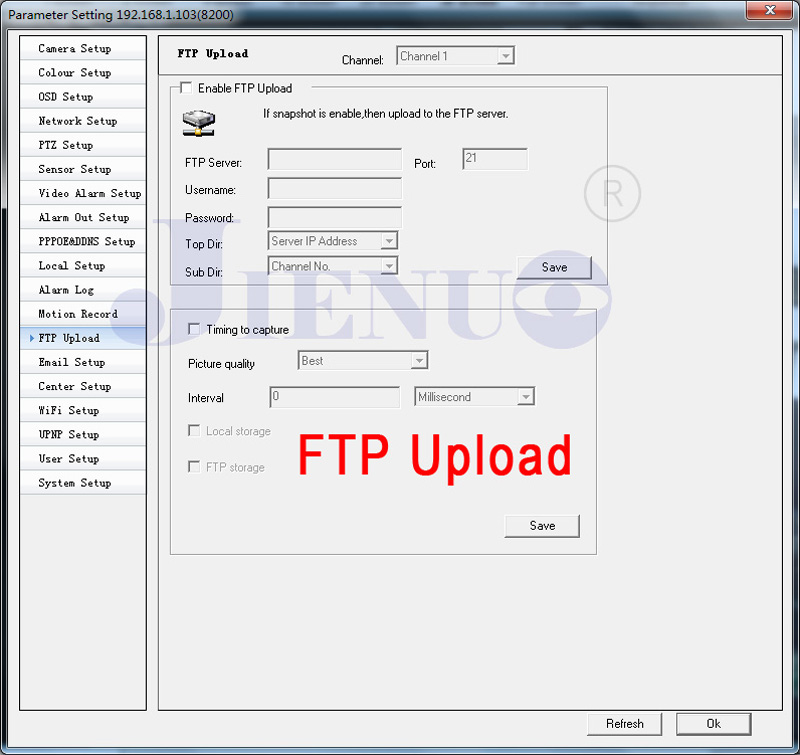

E-mail snapshot, FTP upload alarm pic

System Requirements

Operating System

Win98 SE/ME/2000/XP/Vista/win7/win8  IE5.0,  firefox, chrome






13507-1507-3507-4507--2507-9507-8507-53.6mm 720p6mm 720p8mm 720p506AR-A-WIFI05506AR-A-WIFI06506AR-A-WIFI13507-6507-71345678daytime1273At night5 (2)6 (2)6

Additional Information

Technology

Infrared

Brand Name

JIENUO

IR Distance(m)

5-30M

Power Supply(V)

DC 12V 2A

Power Consumption(W)

5W

Sensor Brand

SONY

Sensor

CMOS

Alarm Action

FTP Photo

Alarm Action

Email Photo

Alarm Action

Local Alarm

Ships From

ShenZhen China

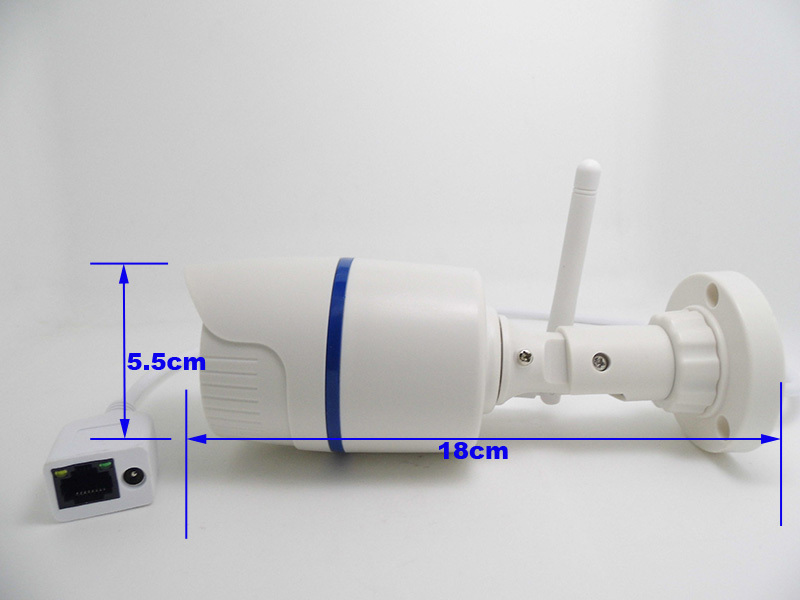

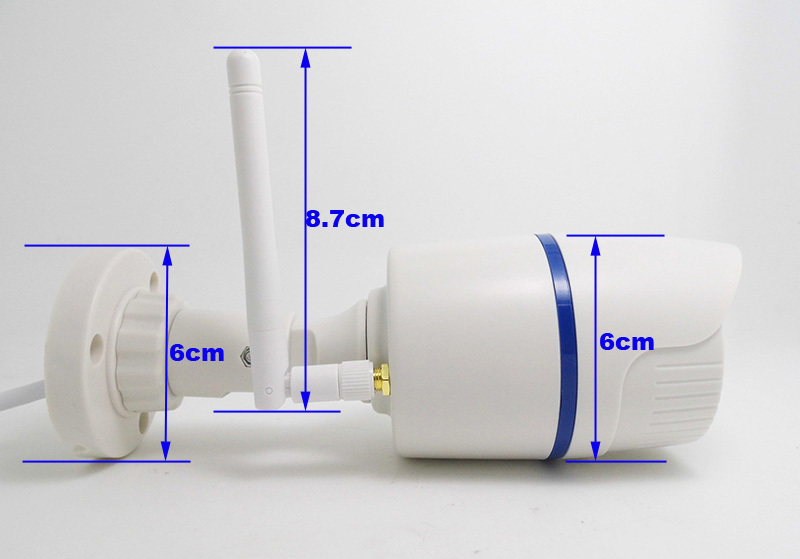

Dimensions (L x W x D)(mm)

180mm*55mm

Special Features

Waterproof / Weatherproof

Viewing Angle (Degree)

82

Connectivity

IP/Network Wireless

Supported Mobile Systems

iPhone OS

Supported Mobile Systems

Android

Supported Operating Systems

Windows XP

Supported Operating Systems

Windows Vista

Supported Operating Systems

Windows 7

Supported Operating Systems

Windows 8

Type

IP Camera

Video Compression Format

H.264

Video Compression Format

MPEG4

Lens (mm)

3.6mm

Minimum Illumination(Lux)

1/4

High Definition

720P(HD)

Network Interface

RJ-45 10/100Mb Ethernet Slot

Style

Bullet Camera

Model Number

JN-IP507AR-A-WIFI

Wireless:

802.11b/g/n

Supported Operating Systems

Windows XP win 2000 win vista win 7 win 8

Mobile phone PC

Andrews, IOS

Free Domain

Support

Type

CCTV IP Camera

Shape

Bullet Camera

P2P

Support

Onvif Protocol

Support

h.264

Support
