5MP HD IP camera CCTV alarm surveillance system onvif POE 2.8-12mm varifocal lens Security Network IPC TI solution W898vG-B-PoE

$85.00



Cheap price whole sale 1mp 720p IP camera POE onvif P2P security Hisilicon Super low bitrate H.264 TS921F-B-POEUSD 18.90/piece2mp 1080p Low lux Hisilicon HD IP camera POE Super low

Buy product

SKU: 32440637490 Category:



TITILE

TS3200sH-BTS3200aVJ-BTS896sJ-BTS899vJ-BTS898sH

NOTICsE

1423waterproof cable

W898vG-B-POE

Default/standard lens:  2.8-12mm 3mp varifocal lens



ReadMe

Take 1 minute to read below information

1. Please confirm the lens within 24 hours, otherwise we have to send out camera with default/standard lens size.



2. There is no power adapter provided for POE camera, if you need power adapter as well, please order it here at this link Power adapter DC12v 2A



3. For free shipping items, we usually transport it by China Post, Singarepore Post, Netherlands Post or any other seller shipping method, this is depending on the buyer location. but all the shipping method has tracking number available. Buyer should be well noted and accept it before purchase.



4. The recipient address and telephone number must be correct, we do not accept to change the recipient address after parcel sending out, and any extra charge due to the incorrect address information will be on buyer side.



 5. We can help to say low value on shipping invoice to reduce/avoid import duty. If without any notice from buyer, we usually say a half or a third or any other value it may help to reduce/avoid import duty and declare such as "IP camera sample", "IP camera gift", "CCTV kit sample", "NVR sample" or any other description with "sample" and "gift" on shipping invoice. Buyer must be understanding there is no one hundred% free import duty when you receive the goods, this is depending on buyer local custom.


features
TI5mp

Specification

TI Solution 5MP IP Cameras B Version

Product Series

5MP

3MP WDR

3MP Lowlux

2MP Lowlux

1.3MP

1MP

DSP

TI DaVinci DM365

TI DaVinci DM365

TI DaVinci DM365

TI DaVinci DM365

Hisilicon DM3518

Hisilicon DM3518

Image Sensor (Progressive)

5.0 Megapixel

3.0 MegapixelWDR

3.0 MP Low Lux

2.0 MP Low Lux

1.3 MP Low Lux

1.0 Megapixel

1/2.5" HD CMOS

1/3" HD CMOS

1/3" HD CMOS

1/3" HD CMOS

1/3" HD CMOS

1/4" HD CMOS

Min. Illumination

Color zero.6Lux/F1.2 B/W zero.08 Lux/F1.2

Color zero.6Lux/F1.2 B/W zero.08 Lux/F1.2

Color zero.1Lux/F1.1 B/W zero.01 Lux/F1.1

Color zero.1Lux/F1.1 B/W zero.01 Lux/F1.1

Color zero.1Lux/F1.1 B/W zero.01 Lux/F1.1

Color 1Lux/F1.2, B/W zero.1 Lux/F1.2

Video Output

&

Frame Rate

Full HD Real-time1080P

Full HD Real-time 1080P

Full HD Real-time 1080P

Full HD Real-time 1080P

Full HD Real-time 960P

Full HD Real-time 720P

"Full HD Real-time" of Main Stream = 25fps@PAL; 30fps@NTSC, 1-30fps adjustable

Note: 5MP =2592×1920, 3MP=2048×1536, 2MP=1920×1080, 1.3MP=1280×960, 1.0MP=1280×720

2592X1920@10fps









2048X1536@15fps

2048X1536@15fps

2048X1536@15fps



1920X1080@25fps

1920X1080@25fps

1920X1080@25fps

1920X1080@25fps



1280X960@25 fps

1280X960@25 fps

1280X960@25fps

1280X960@25fps

1280X960@25fps



1280X720@25fps

1280X720@25fps

1280X720@25fps

1280X720@25fps

1280X720@25fps

1280X720@25fps

Sub Stream: 960X540, 640X360, 480X270, 352X288, 320X240, 352X192, 320X192, 320X180, 288X192, 256X192;

Day/Night

IR-cut double layer filter( Auto-Switch)

Electronic Shutter

1/50 ~ 1/100,000s, Auto Iris

Parameter Settings

Brightness, Contrast, Chroma Saturation, Image Quality Level(image resolution)

User Application

WEB IE Browser & UC Video Surveillance Client Software & NVR(Network Video Recorder)

Audio Coding

AAC Codec Standard, 1-way audio and audio synchronization with video are available when camera is T version

(extra charge for audio function)

Compression

H.264, 100Kbps~6Mbps or 8Mbps adjustable, Dual-stream

Network Interface

1 X RJ45 10/100M Ethernet Port(10/100M adaptation)

Network Protocol

RTSP, FTP, PPPoE, DHCP, TCP/IP, HTTP, UDP, RTP/RTCP, UPNP, SMTP, SIP, DDNS, DNS

Mainstream rtsp

Substream  rtsp

rtsp://192.168.1.168:554/0

rtsp://192.168.1.168:554/1 (there is no substream under 5mp resolution)

Compatibility

ONVIF (Open Network Video Interface Forum Core Specification)

Power

DC 12V, Optional POE(Power Supply over Ethernet) is available with POE module is integrated

Working Environment

-25 ~ 50, 90% RH

Product Versions’ Difference

Basic version

 T version

 M version

Audio

1 channel Audio Input(2Vp-p/1kΩ), support sound percent-up, sound monitor or microphone.

no

yes

yes

Alarm

1 channel Alarm Input and 1 channel Alarm Output, support Motion Detection, Linkage Alarm, Linkage recording, sensor trigger alarm functions

no

no

yes

RS485

1XRS422/RS485 Interface, support PELCO(P) and other PTZ control Protocol

no

no

yes

USB

1XUSB interface or SD Card slot, Support U disk or SD card up to 64G

no

no

yes

Note:

1. The default/standard camera is for Basic version, if you need to upgrade it to advanced version, there will be extra charge as below:

T version: extra charge       USD10

M version: extra charge      USD15

DM368 Chip: extra charge  USD9

Please confirm with seller before buying.



audio connection



If you order the camera with audio function(T version or M version), you can connect the pickup to camera refer to the following diagram.

audio

If you need the microphone(pickup) or 12V adapter, please order it by clicking the following pictures.

audio_01audio_02audio_03audio_04

accessories

If you need bracket for this camera, please order it by clicking the following picture.

898

860960




Client Software

UC platform

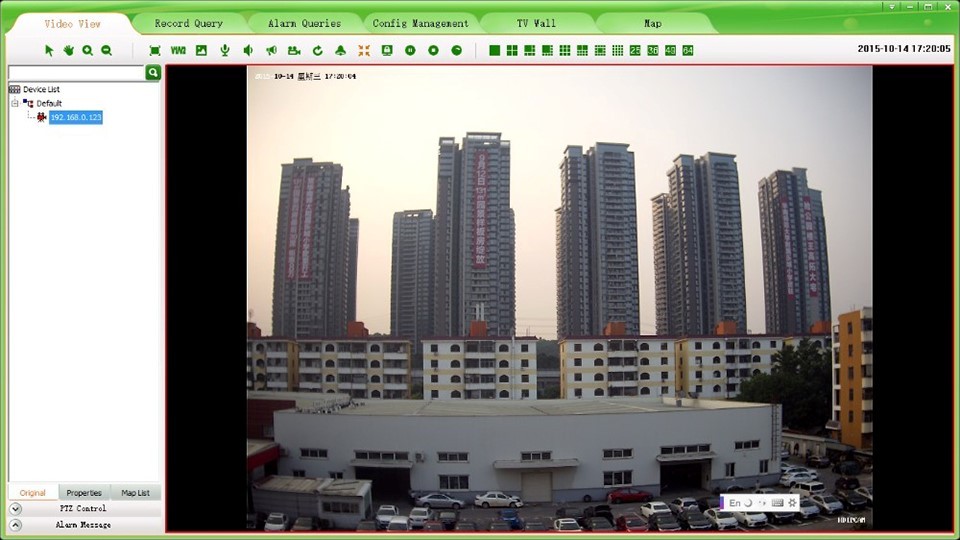

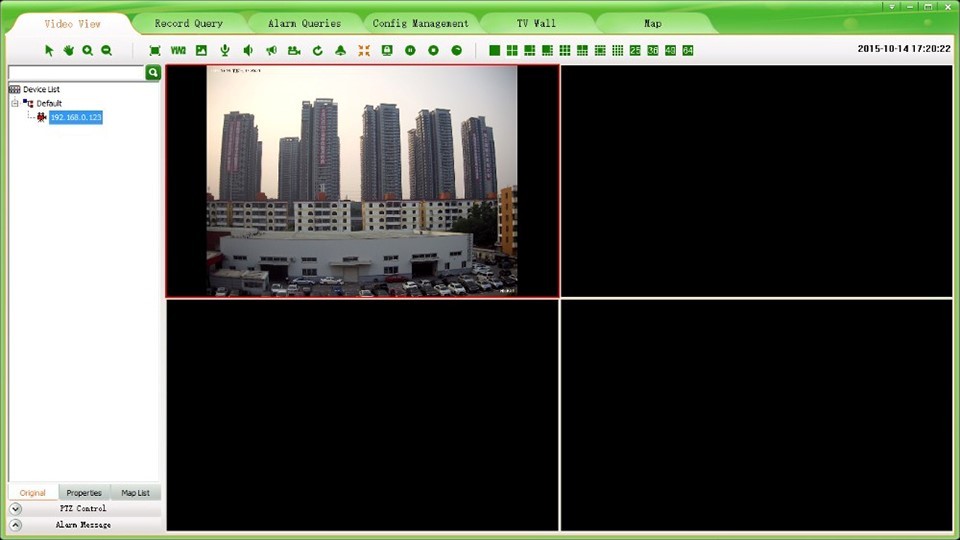

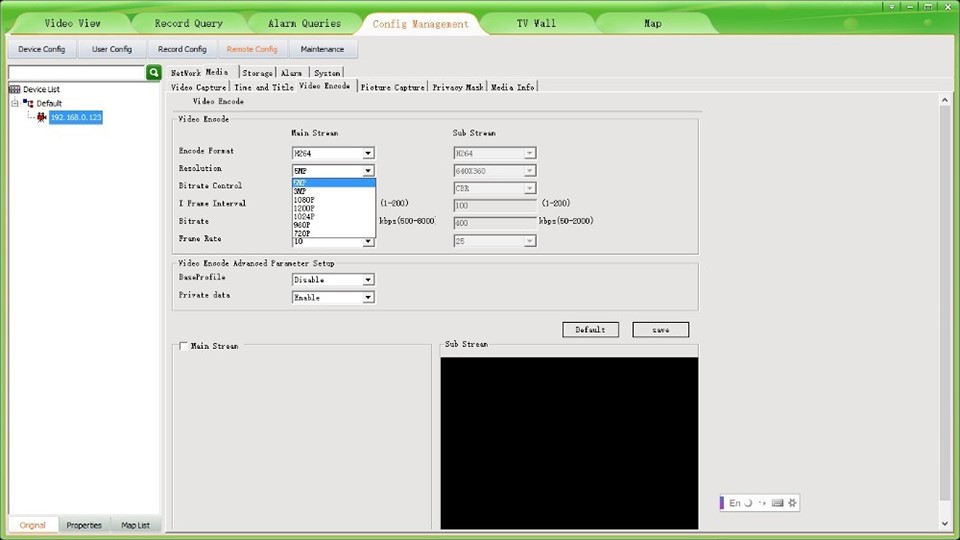

The cameras can be managed by UC client.

1
2
3

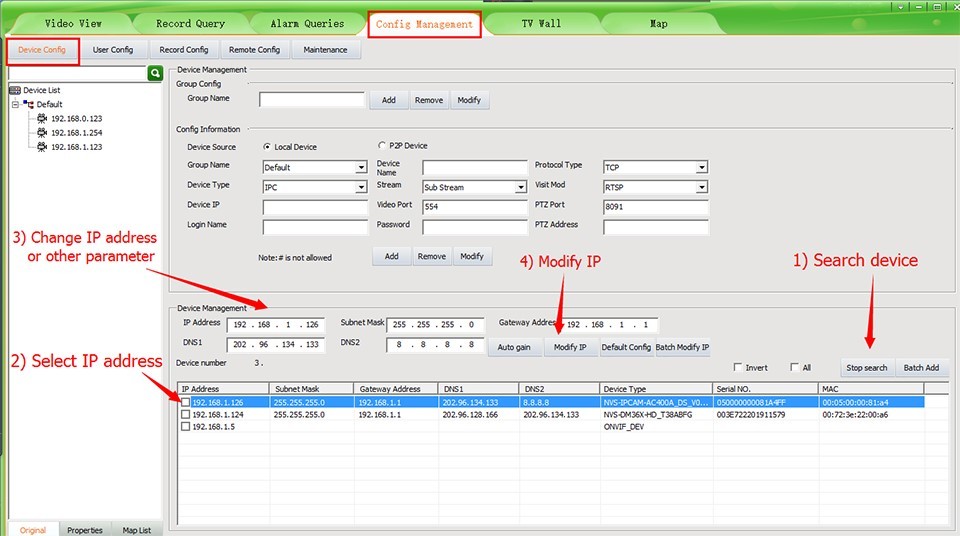

Change IP address of camera by UC software.


4

Web Interface

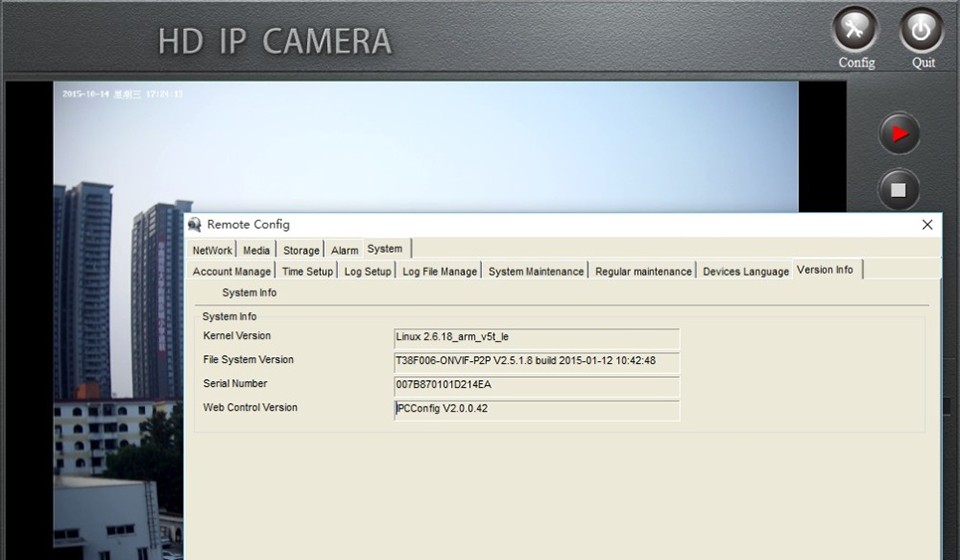

This is a internal web for the camera.

5

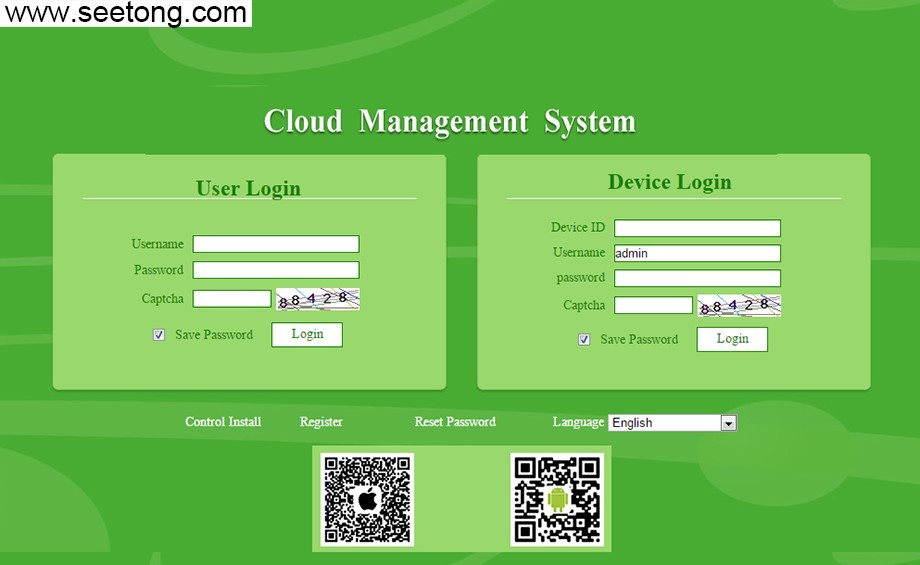

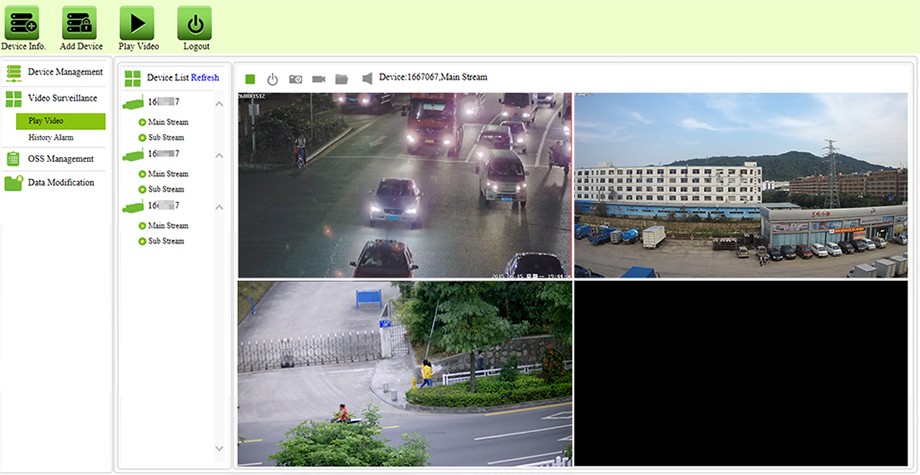

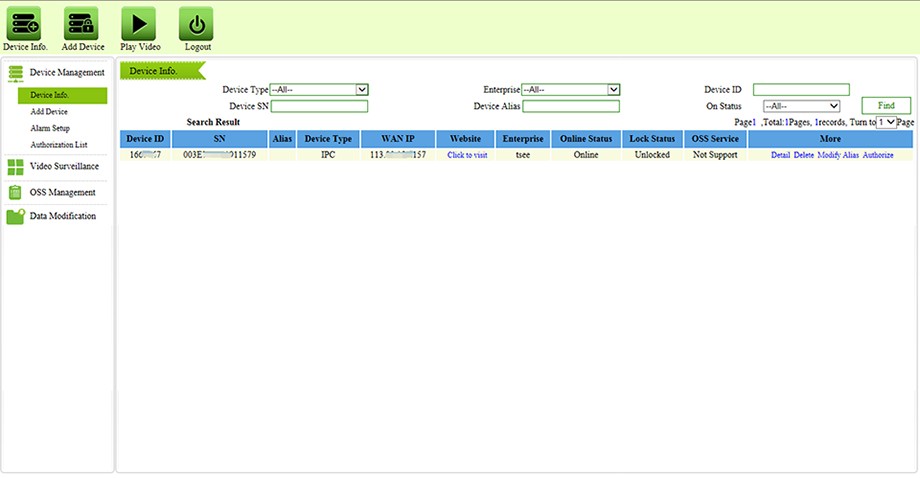

This is seetong website, which can remotely visit the cameras.

6
seetong1
seetong2

phone app

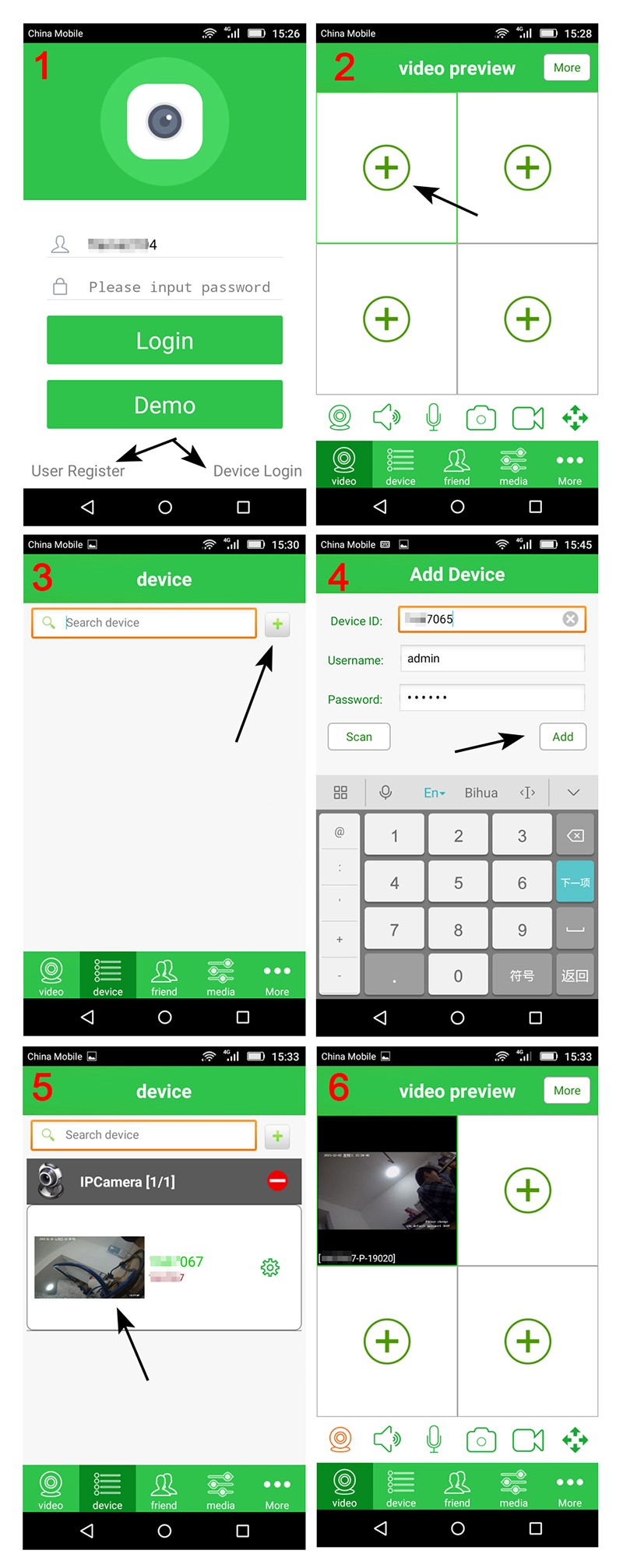

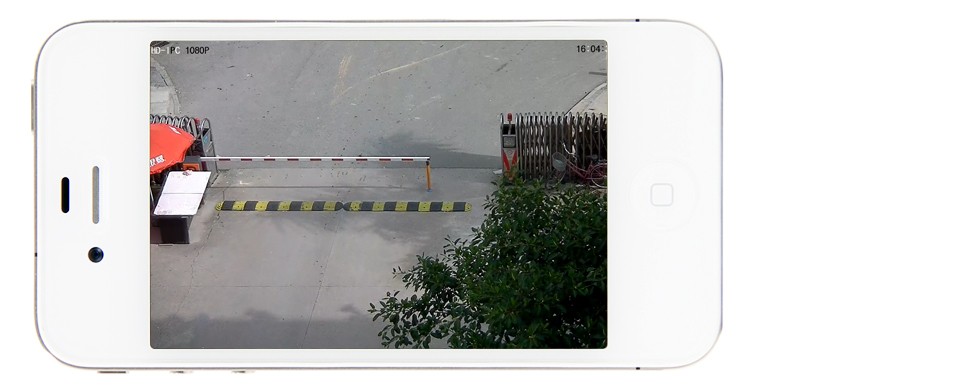

This is seetong app, which can remotely visite the cameras via smart phone, you can find it in google play or apple app store.
(seetong)

phone
w800

System Solution

1

The cameras can be seen and managed by UC software or Web IE brower in LAN or by remote visit through WAN. The video recorded by the camera can be stored on the PC in LAN.

2

Multiple cameras can be seen and managed by UC software or Web IE brower in LAN or by remote visit through WAN. The video recorded by the cameras can be stored on the PC in LAN.

3

Multiple cameras can be seen and managed by NVR software or UC software or Web IE brower in LAN or by remote visit through WAN. The video recorded can be stored on the NVR in LAN.

4

Multiple cameras can be seen and managed by NVR software or UC software or Web IE brower in LAN or by remote visit through WAN. The video recorded can be stored on the NVR or PC in LAN.

5

Multiple cameras can be seen and managed by NVR software or UC software or Web IE brower in LAN or by remote visit through WAN. The video recorded can be stored on the NVR or PC in LAN.



about payment

1. We accept payment by Paypal, West Union and bank transfer, but we highly recommend the transaction by ESCROW.

3.For the items, which can be shipping cost combined, the buyer should contact us to updated the payment information before paying.



about shipment

1.We handle the order and percent the items timely, and usually we will send them out within 24 hours if the stock is available.

2. The shipping service is provided by carrier, there may be some delay due to the weekend, holiday, bad weather or any other irresistible factors.

3. The buyer must cooperate with local forwarder and assist to custom clearance. There will be the return risk if the buyers deny of delay the custom clearance. In this case, buyer must to bear all the loss.

4. If you do not receive the package in a undeniable long time, please be free to inform us, we will contact our forwarder to push this shipment.



return & Refund

1. All the items has been carefully tested before delivery, there may be some damage during the transportation, Please contact us as soon as you receive the package if something damaged, and make sure the parcel is well packed before your signature.

2. If the quality problem happened to items, we strongly recommend the buyer contact us before return.  The shipping cost should be prepaid by buyer, we will refund after receiving the parcel.

3. Please make sure the returned parcel including all the items and accessories like the original package.



about feedback

1. Please do not hesitate to leave us the positive feedback if you are satisfied with our products and service. Your satisfaction is our great success.

2. Please do contact us before you leave any neutral or negative feedback, 99% issue can be solved by communication.

3. We do not accept any negative feedback due to shipment issue or local custom taxation, because they are something out of our control, but anyhow, we will do our best to help our customer to solve the problem and finally reach a win-win status in business.







Additional Information

Technology

Infrared

IR Distance(m)

10-20m

Power Supply(V)

DC 12V

Power Consumption(W)

4W

Sensor Brand

SONY

Sensor

CMOS

Alarm Action

Email Photo

Ships From

China

Dimensions (L x W x D)(mm)

140*125mm

Special Features

Waterproof / Weatherproof

Supported Mobile Systems

iPhone OS

Supported Mobile Systems

Android

Connectivity

IP/Network Wired

Supported Operating Systems

Windows 7

Supported Operating Systems

Windows 8

Type

IP Camera

Video Compression Format

H.264

High Definition

1080P(Full-HD)

Network Interface

RJ-45 10/100Mb Ethernet Slot

Style

Dome Camera

Model Number

W898vG-B-POE

Lens (mm)

varifocal 2.8-12mm

Image Sensor

1/2.5 inch 5.0 Megapixel progressive CMOS sensor

Dual stream

Main stream / Sub stream

Support

Motion detection

Default / Standard Lens

3mp 2.8-12mm varifocal

Client software

UC

Complaint

ONVIF

POE

37V-50V

Waterproof

IP65

Package

Gift box
