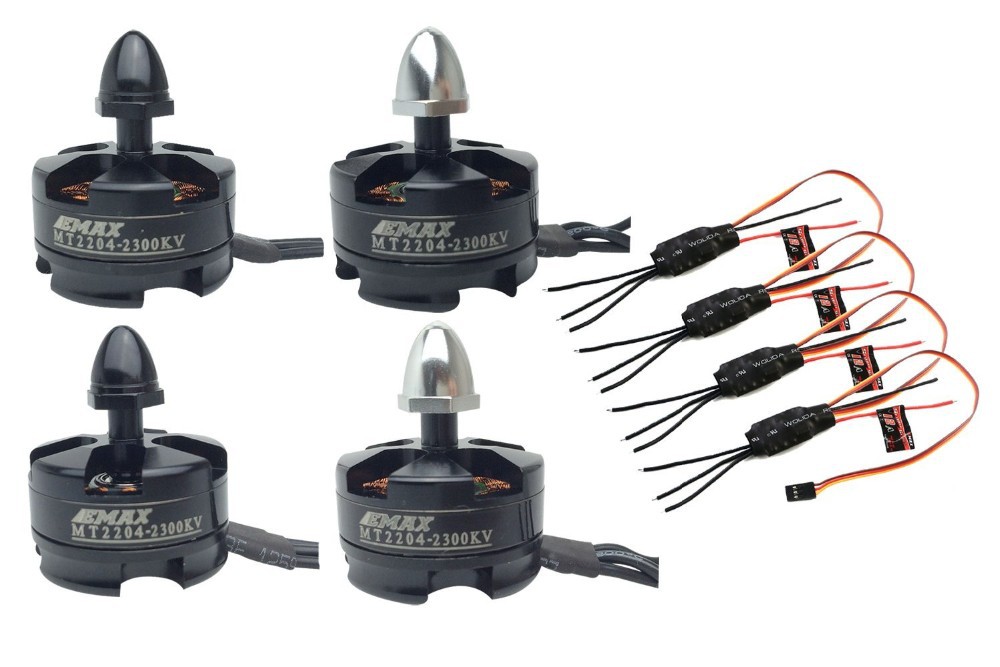

4x EMAX Simonk 12A ESC + 4x 2204 2300KV Motor for 250mm QAV250 Multi Quad Copter

$51.99 $46.79

4x EMAX Simonk 12A ESC + 4x 2204 2300KV Motor for 250mm QAV250 Multi Quad Copter Package content: 2x 2204 2300KV Motor (CW) 2x 2204 2300KV Motor (CCW) 4x EMAX Simonk-12A ESC 100% Brand NEW !!!

Buy product

SKU: 32398411317 Category: Tag:
4x EMAX Simonk 12A ESC + 4x 2204 2300KV Motor
for 250mm QAV250 Multi Quad Copter
Package content:
2x 2204 2300KV Motor (CW)
2x 2204 2300KV Motor (CCW)
4x EMAX Simonk-12A ESC
100% Brand NEW !!!

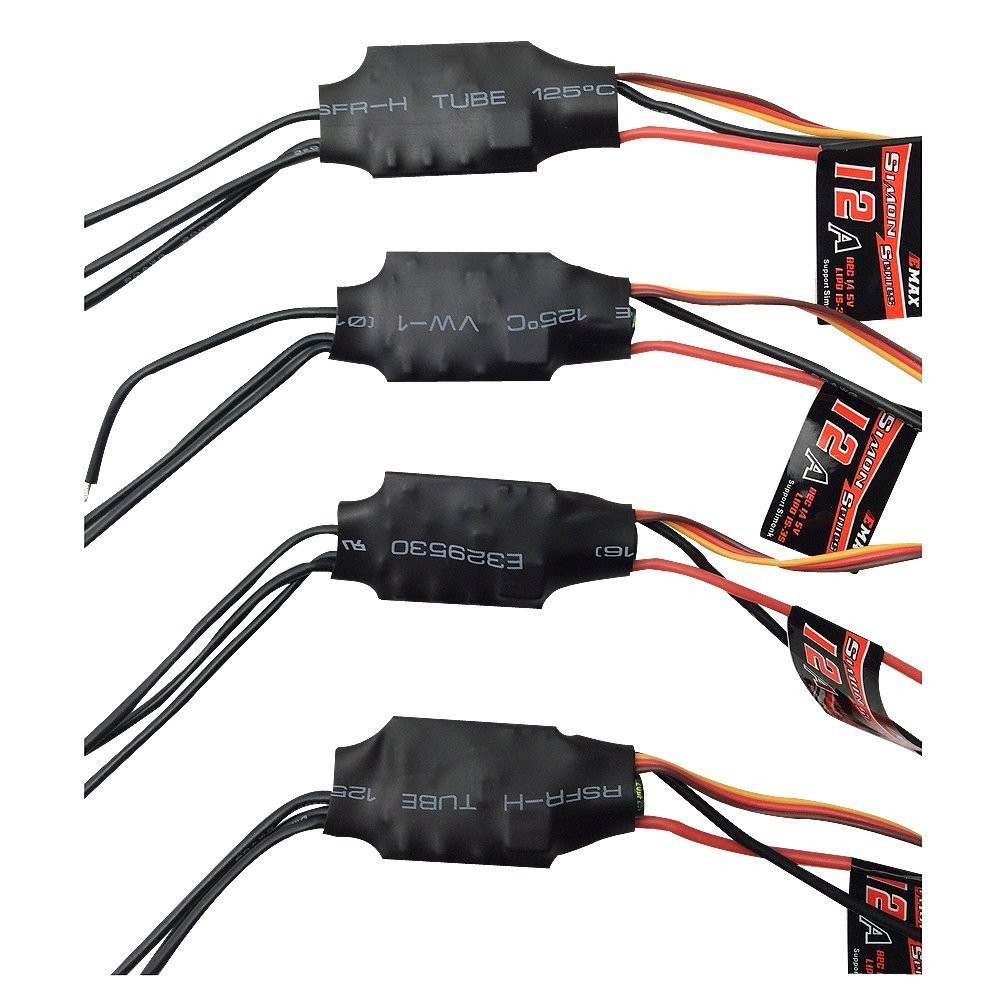

For 12A Simonk ESC
Features:
1.1 In response to Simon K firmware, further optimized to the perfect drive performance.
1.2 Low-voltage protection, over-heat protection and self-check functions.
1.3 Separate power supply for MCU and BEC, enhancing the ESC’s potential of eliminating magnetic interference.
1.4 Parameters of the ESC will also be set by way of program card or transmitter.
1.5 Throttle range will also be set to be compatible with different receivers.
1.6 Equipped with constructed-in linear BEC or switch BEC.
1.7 Max speed: 210,000 rpm for 2-pole, 70,000 rpm for 6-pole, 35,000 rpm for 12-pole.

Specifications:
2.1 Continuous Current: 12A
2.2 Burst current (10S): 15A
2.3 Li-xx Battery (cell): 2-3
2.4 Dimension (L*W*H): 25mm x 20mm x 7mm
2.5 Weight wires Included: 9
2.6 BEC Mode: Linear
2.7 BEC Output: 1A/5V
2.8 Programmable: Yes

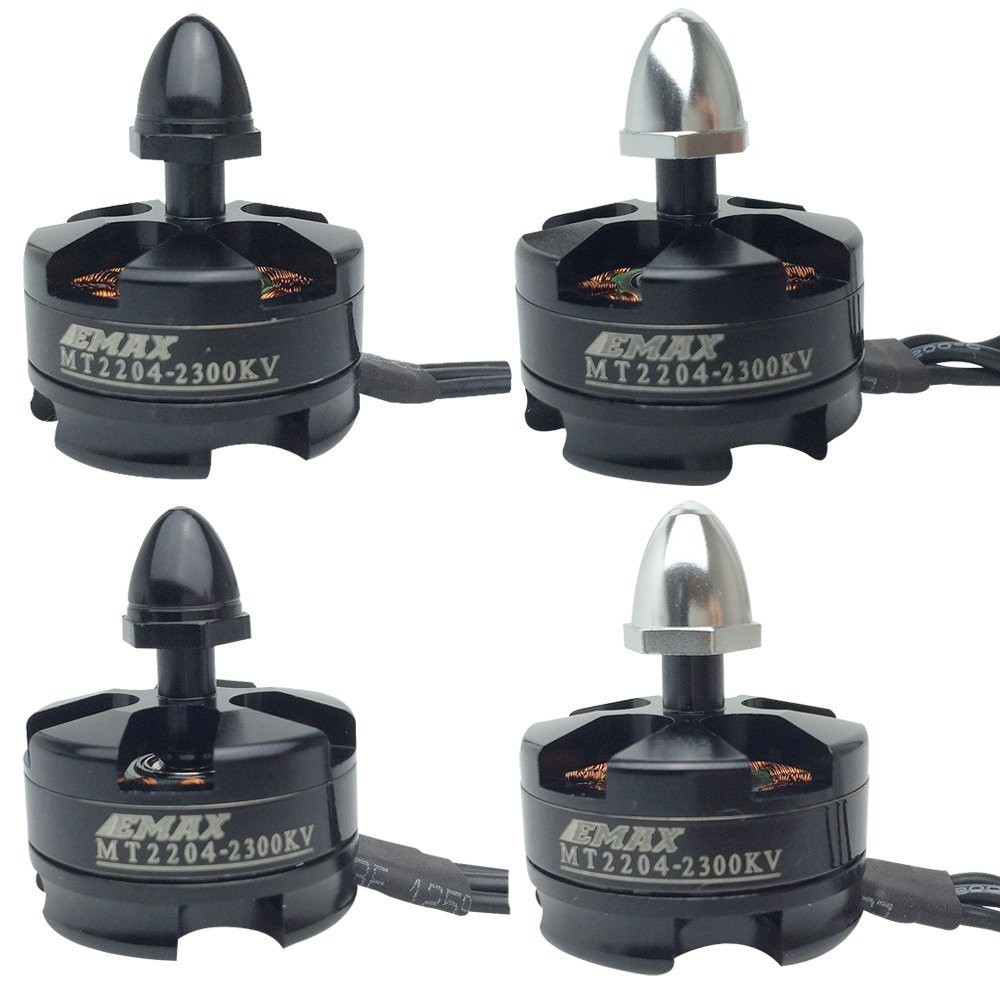

For MT2204 2300KV motor
Specification
KV : 2300
MAX Thrust : 440G
No. of Cell : 2-3S
Framework : 12N14P
Propeller : 5"~6"
Length : 32.2mm
Weight : 25G
Shaft : 3mm
Diameter : 27.9mm
71Mc2kWZ5DL._SL1500_71vpiAEY+1L._SL1000_61ibPF22EqL._SL1000_

Additional Information

Use

Vehicles & Remote Control Toys

Brand Name

EMAX

Tool Supplies

Assembled class

Material

Composite Material

Remote Control Peripherals/Devices

Remote Controller

RC Parts & Accs

Antennas

Upgrade Parts/Accessories

Adapter

Model Number

MT2204

Four wheel Drive Attributes

Assemblage
